OLAP Cube Dimensions and Measures with Filtered and Invisible Values

Similar to how invisible and filtered dimensions and measures are shown in the Argos client, OLAP cubes in the Web Viewer now use colored indicators to show which dimensions have invisible and filtered values.

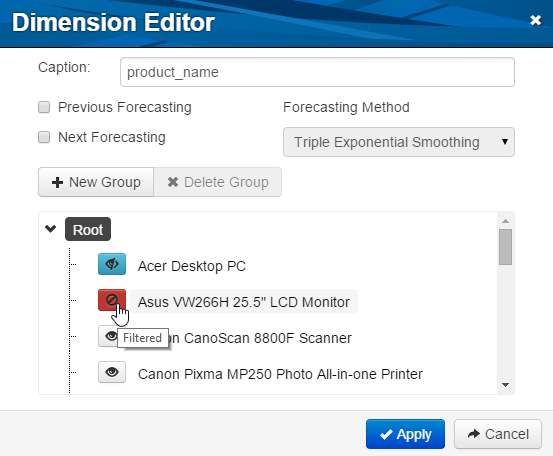

• Invisible values (blue icon) are not displayed in the OLAP cube, but they are still included in the cube totals.
• Filtered values (red icon) are not displayed in the OLAP cube and are not included in the cube totals.

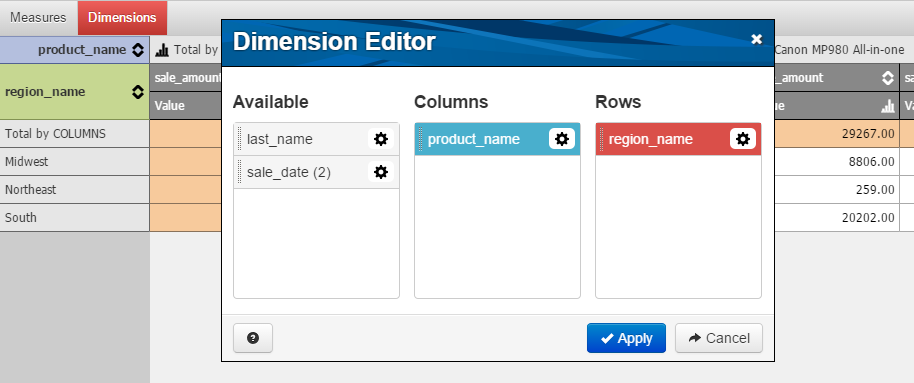

Notice how the Dimensions button is shown in red, indicating the presence of filtered values. When you open the Dimension Editor, you can see that the region_name dimension contains filtered values. If there were only invisible values, the Dimensions button would be highlighted in blue instead.

Similarly, when a measure has min/max value filtering applied, the Measures button at the top of the OLAP cube appears in red.
